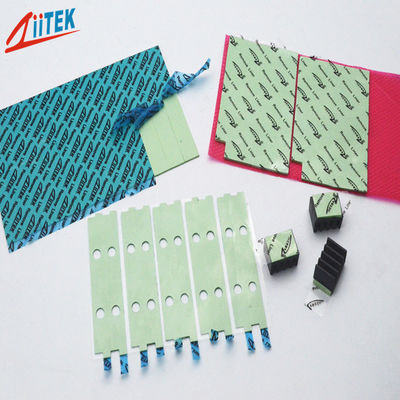

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Ampliación de imagen :  Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: ZIITEK
Certificación: UL and RoHs
Número de modelo: Serie TIF100-07U
Pago y Envío Términos:
Cantidad de orden mínima: 1000pcs
Precio: Negociable
Detalles de empaquetado: 1000pcs/bolsa
Tiempo de entrega: 3-5 días de trabajo
Capacidad de la fuente: 100000pcs/día
Descripción detallada del producto
Nombre de los productos: Almohadilla térmica fotovoltaica de tamaño personalizado, 1-15W, 0,5mm ~ 5,0mm, almohadillas conduct Palabras clave: Almohadilla térmica
Conductividad térmica: 1,5 W/m-K Color: verde
Espesor: 0.020" ((0.5mm) ~ 0.200" ((5.0mm) Dureza: 27 orilla 00
temporeros del uso continuo: -45 a 200 °C Muestra: Muestra libre
Solicitud: Enfriamiento LED fotovoltaico para computadora portátil GPU Ssd

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling



The TIF®100-07U Series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> LED Power Supply
> LED Controller
> LED Ceilinglamp
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator



Typical Properties of TIF®100-07U Series
Property Value Test method
Color Green ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.2g/cc ASTM D297
Hardness 27 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 3.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

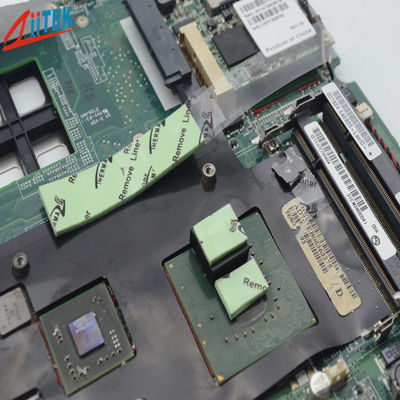

Custom Size Photovoltaic Thermal Pad 1-15W 0.5mm~5.0mm Silicone Themals Conductive Pads For Led Laptop GPU Ssd Cooling 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Company profile



With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL



Independent R&D team



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
