Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

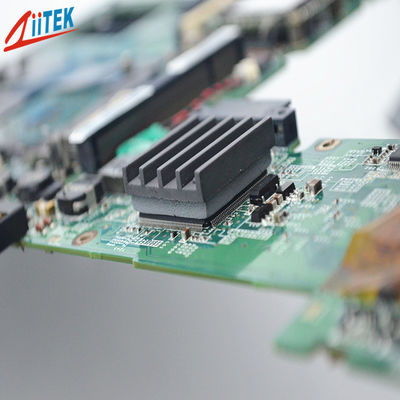

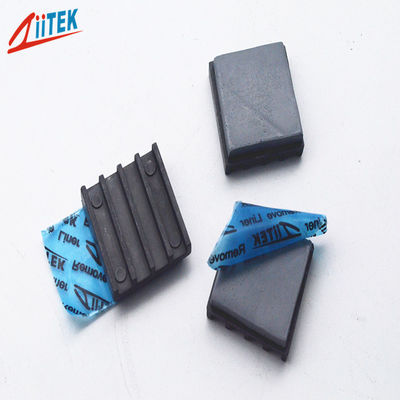

Ampliación de imagen : Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

Datos del producto:

Lugar de origen:	PORCELANA
Nombre de la marca:	ZIITEK
Certificación:	UL and RoHs
Número de modelo:	Serie TIF100-02F

Pago y Envío Términos:

Cantidad de orden mínima:	1000pcs
Precio:	Negociable
Detalles de empaquetado:	1000pcs/bolsa
Tiempo de entrega:	3-5 días de trabajo
Capacidad de la fuente:	100000pcs/día

Contacto

Descripción detallada del producto

Nombre de los productos:	Price de fábrica Venta caliente Padera de silicio conductiva térmica1.5W 0.5 ~ 5.0 mm de espesor	Dureza:	60 costas 00
Solicitud:	Batería de coche y fuente de alimentación	Espesor:	0.020" ((0.5mm) ~ 0.200" ((5.0mm)
Conductividad térmica:	1,5 W/m-K	temporeros del uso continuo:	-45 a 200 °C
Color:	Gris	Palabras clave:	cojín termal del reemisor de isofrecuencia
Muestra:	Muestra libre

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery

The TIF^®100-02F Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF^®100-02F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.

Features

> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> Easy release construction
> Electrically isolating
> High durability

Applications

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card

> Power supply
> Heat pipe thermal solutions
> Memory Modules

Typical Properties of TIF^®100-02F Series
Property	Value	Test method
Color	Gray	******
Construction &Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(0.50mm)	ASTM D374
Specific Gravity	2.3g/cc	ASTM D297
Hardness	60 Shore 00	ASTM 2240
Continuos Use Temp	-45 to 200℃	******
Dielectric Breakdown Voltage	> 5500 VAC	ASTM D149
Dielectric Constant	4.0 MHz	ASTM D150
Volume Resistivity	1.0 X10¹² Ohm-meter	ASTM D257
Flame rating	94 V0	UL E331100
Outgassing(TML)	0.35%	ASTM E595
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

Factory Price Hot Selling Thermal Conductive Silicon Pad1.5W 0.5~5.0mm Thick Thermal Gap Filler Pad For Car Battery 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
