Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

Ampliación de imagen :  Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

Datos del producto:
Place of Origin: China
Nombre de la marca: ZIITEK
Certificación: UL and RoHs
Model Number: TIF540-20-11US
Pago y Envío Términos:
Minimum Order Quantity: 1000pcs
Precio: Negociable
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Descripción detallada del producto
Products name: Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad Thermal conductivity& Compostion: 2.0W/m-K
Continuos Use Temp: -40℃ to 200℃ Construction: Ceramic filled silicone elastomer
Specific Gravity: 2.7g/cc Keywords: Thermal Silicone Pad
Hardness: 20±5 Shore 00 Color: Gray
Thickness: 1.0mmT Application: LED CPU GPU MOS Laptop

Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad

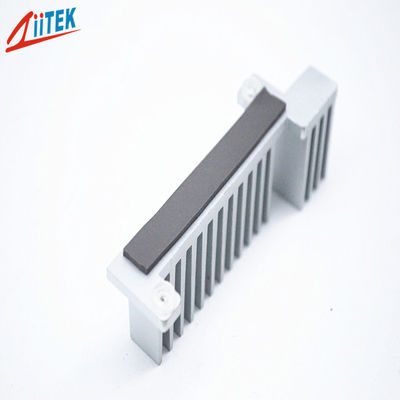

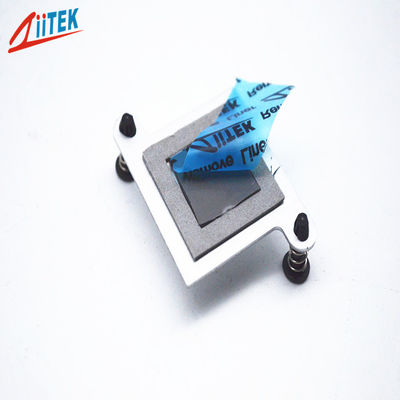

TIF540-20-11US series use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.



Features:
> Excellent thermal conductivity 2.0W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized


Applications:

> Cooling components to the chassis of frame
> CPU and GPU processors and other chipsets
> High-performance computing (HPC)

> Industrial equipment
> Network communication devices

> New energy vehicles
> LED CPU GPU MOS

> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIF540-20-11US Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *****
Specific Gravity 2.7 g/cc ASTM D792
thickness 1.0mmT ASTM D374
Hardness (thickness<1.0mm) 20±5 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Dielectric Breakdown Voltage ≥5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity ≥1.0*1012 Ohm-cm ASTM D150
Fire rating 94 V0 UL (E331100)
Thermal conductivity 2.0 W/m-K ASTM D5470

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.



Product Specification
Product Thicknesses: 0.020"(0.50mm)-0.200"(5.00mm)
Product Sizes:8" x 16"(203mm x406mm)
Custom die-cut shapes and thicknesses are available.Please contact us for details.
Store in a cool, dry place, away from fire and sunlight.
Factory Hot Sale Thermal Pad High Temperature Resistant Thermal Insulated Gap Pad Gpu Laptop Thermal Silicone Pad 0
Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
