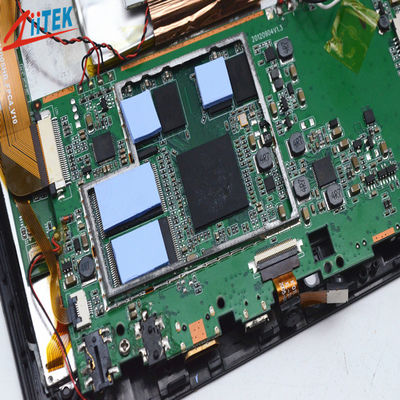

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

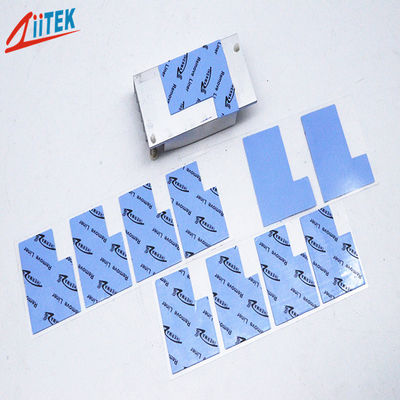

Ampliación de imagen :  Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications

Datos del producto:
Lugar de origen: PORCELANA
Nombre de la marca: ZIITEK
Certificación: UL and RoHs
Número de modelo: Serie TIF100-05ES
Pago y Envío Términos:
Cantidad de orden mínima: 1000pcs
Precio: Negociable
Detalles de empaquetado: 1000pcs/bolsa
Tiempo de entrega: 3-5 días de trabajo
Capacidad de la fuente: 100000pcs/día
Descripción detallada del producto
Nombre de los productos: Almohadilla térmica económica de 1,5 W almohadilla de silicona de flujos de silicona de brecha térmi Dureza: 12±5 orilla 00
Muestra: Muestra libre Espesor: 0.020" ((0.5mm) ~ 0.200" ((5.0mm)
Palabras clave: cojín termal del silicón Conductividad térmica: 1,5 W/m-K
temporeros del uso continuo: -45 a 200 °C Color: Azul
Solicitud: Módulos de memoria, dispositivos de almacenamiento masivo, etc.
Resaltar:

1.5W thermal silicone pad

,

thermal conductive gap filler

,

high conductive silicone thermal pad

Economical 1.5W Thermal Silicone Pad Thermal Conductive Gap Filler Silicone Pad High Conductive Silicone Thermal Pad



The TIF®100-05ES Series is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy.This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware

> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure



Typical Properties of TIF®100-05ES Series
Property Value Test method
Color Blue ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.0g/cc ASTM D297
Hardness 12±5 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.5 MHz ASTM D150
Volume Resistivity 1.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470



Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.



Economical Soft and Compressible Blue Thermal Silicone Pad for High Conductive Gap Filler Applications 0

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
