Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Ampliación de imagen :  Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: Ziitek
Certificación: RoHs
Número de modelo: TIG780-50HP
Pago y Envío Términos:
Cantidad de orden mínima: 1kg
Precio: 0.1-10 USD/KG
Detalles de empaquetado: 1kg/can
Tiempo de entrega: 3-5 días laborables
Capacidad de la fuente: 100 kg/días
Descripción detallada del producto
Nombre de productos: Buena pasta termal de la grasa termal de la conductividad termal para los componentes electrónicos I color: gris
Construcción y Composición: Óxido metálico/aceite de silicona Densidad: 2,3 g/cm³
Conductividad térmica: 5,0 W/mK Impedancia térmica ((%22C-pulg²/W) @30 psi): 0.015
Palabras clave: Pasta térmica Temperadora operativa recomendada: -40 ~ 200 ℃

Good Thermal Conductivity Thermal Grease Thermal Paste For Electronic Components IC, CPU, MOS

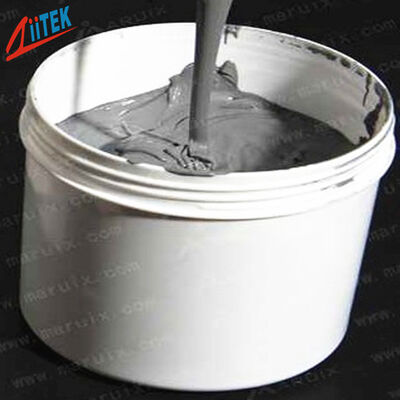

TIG®780-56 Series is an environmentally friendly silicone based thermal paste designed to efficiently solve overheating problems in electronic devices and improve long-term reliability, TIG®780-50HP is a paste like material that can fully wet the surfaces of electronic components and heat sinks. It acts to fill the gaps between electronic components and heat sinks, eliminate air, and significantly improve heat dissipation eficiency (better than traditional thermal pads or ordinary silicone grease), thereby forming an extremely low thermal resistance interface and achieving excellent thermal conductivity efficiency.



Features



> High thermal conductivity
> Excellent low thermal resistance
> Good electrical insulation
> Excellent long-term stability
> Non toxic, environmentally friendly,and safe, meeting RoHS requirements


Applications lnclude


> Al server
> Industrial equipment
> Medical electronic devices

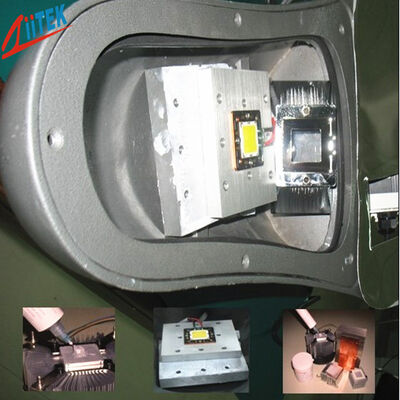

> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices



Typical Properties of TIG®780-50HP Series
Property Value Test Method
Color Gray Visual
Construction &Compostion Metal oxide / Silicone oil Ziitek Test Method
Density 2.30 g/cm³ ASTM D792
Thermal Conductivity 5.0W/mK ASTM D5470
Bond line Thickness (mm) 0.008 ASTM D374
Thermal Impedance (℃·in²/W) @30 psi 0.015 ASTM D5470
Thermal Impedance (℃·in²/W) @50 psi 0.012 ASTM D5470
Recommended Operating Temp -40℃ to 200℃ *****
Viscosity(mPa.s) 200000 GB/T 10247



Packaging Specifications


Packaging specifications: 0.5kg,1kg,2kg;

If you have any other specification requirements, please contact our company.
