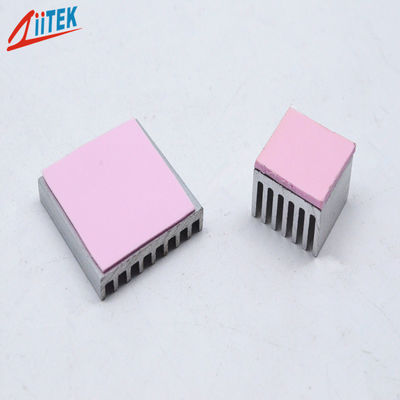

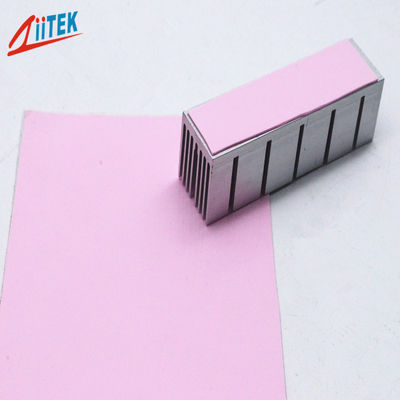

Silicone Thermal Pad Blue Wholesale Silicone Rubber Thermal Insulation Pad Thermal Silicone Pad With Adhesive For Al Servers

Ampliación de imagen : Silicone Thermal Pad Blue Wholesale Silicone Rubber Thermal Insulation Pad Thermal Silicone Pad With Adhesive For Al Servers

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	ZIITEK
Certificación:	UL and RoHs
Número de modelo:	TIF100 10055-50

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	Negociable
Detalles de empaquetado:	1000pcs/bolsa
Tiempo de entrega:	3-5 días
Capacidad de la fuente:	100000pcs/día

Contacto

Descripción detallada del producto

Nombre del producto:	Almohadilla térmica de silicona Almohadilla de aislamiento térmico de caucho de silicona al por mayo	Color:	Rosa
Palabras clave:	cojín termal del silicón	Conductividad térmica:	10 W/mK
Constante dieléctrica @1MHz:	8.5	Dureza:	55 Costa00
Densidad (g/cm³）:	3.4	Aplicación:	Todos los servidores

Silicone Thermal Pad Blue Wholesale Silicone Rubber Thermal Insulation Pad Thermal Silicone Pad With Adhesive For Al Servers

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

The TIF^®100 10055-50 Series a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductivity: 10.0 W/mK
> Good flexibility and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

Applications

> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations

> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems

Typical Properties of TIF^®100 10055-50 Series
Property	Value		Test method
Color	Pink		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.4		ASTM D792
Thickness Range(inch/mm)	0.020~0.030 (0.50~0.75)	0.040~0.200 (1.0~5.0)	ASTM D374
Hardness	70 Shore 00	55 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	8.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹⁴ Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	10.0 W/m-K		ASTM D5470
	10.0 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.02"(0.5 mm)-0.20" (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes:

Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
