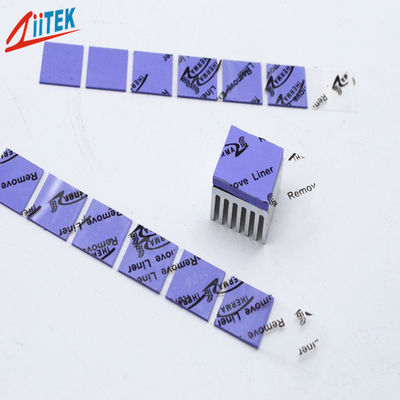

Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Ampliación de imagen : Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	ZIITEK
Certificación:	UL and RoHs
Número de modelo:	TIF100-15-16S

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	Negociable
Detalles de empaquetado:	1000pcs/bolsa
Tiempo de entrega:	3-5 días
Capacidad de la fuente:	100000pcs/día

Contacto

Descripción detallada del producto

Nombre del producto:	Cojín termal del silicón de la fábrica múltiple de la dureza del grueso para los productos eléctrico	Color:	Púrpura
Aplicación:	Disipación de calor de productos eléctricos	Conductividad térmica:	1,5 W/m-K
Constante dieléctrica @1MHz:	4.0	Dureza:	45 SHORE00
Densidad (g/cm³）:	2.2	Palabras clave:	cojín termal del silicón

Multiple Thickness Hardness Factory Thermal Silicone Pad For Electric Products

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIF^®100-15-16S Series a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.

Features:

> Good thermal conductivity: 1.5W/mK
>  Good softness and fillability
>  Self-adhesive without the need for additional surface adhesives
>  Good insulation performance

Applications

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of TIF^®100-15-16S Series
Property	Value		Test method
Color	Purple		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.2		ASTM D792
Thickness Range(inch/mm)	0.010~0.020 (0.25~0.50)	0.030~0.200 (0.75~5.0)	ASTM D374
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	1.5W/m-K		ASTM D5470
	1.5W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010"(0.25 mm)-0.20" (5.00 mm) with increments of 0.010 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).

Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.

For other thicknesses or more information, please contact us.
