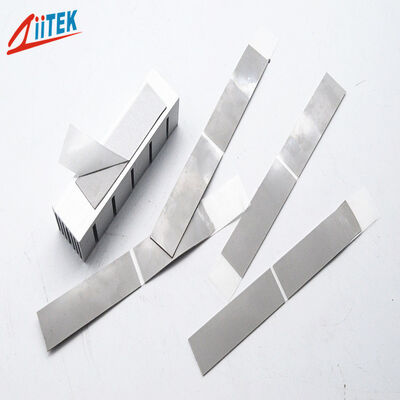

Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers

Ampliación de imagen : Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	ZIITEK
Certificación:	UL and RoHs
Número de modelo:	TIF100 2855-10

Pago y Envío Términos:

Cantidad de orden mínima:	1000 piezas
Precio:	Negociable
Detalles de empaquetado:	1000PCS/BOLSA
Tiempo de entrega:	3-5 días laborables
Condiciones de pago:	T/T
Capacidad de la fuente:	100000 unidades/día

Contacto

Descripción detallada del producto

Nombre del producto:	Materiales térmicos de almohadilla térmica de bajo sangrado para procesadores AI Servidores AI	Dureza:	55 orilla 00
Conductividad térmica:	2,8 W/m-K	Clasificación de llama:	UL 94V-0
Temperatura de uso continuo:	-40 a 200℃	Palabras clave:	Almohadilla térmica
Peso específico:	3,0 g/cc	Aplicación:	Procesadores de IA Servidores de IA

Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers

The TIF^®100 2855-10 is a general-purpose thermal pad with balanced performance. It offers high thermal conductivity and moderate hardness. This balanced design provides good surface conformability and excellent ease of use, effectively delivering a thermal transfer path and basic physical protection for a wide range of electronic components.

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Features

> Good thermal conductive: 2.8W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance

Applications

> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Home appliance industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures

Typical Properties of The TIF^®100 2855-10 Series
Property	Value		Test method
Color	Gray		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	55 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	6.2 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	2.8 W/m-K		ASTM D5470
	2.8 W/m-K		ISO22007

Product Specifications

Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

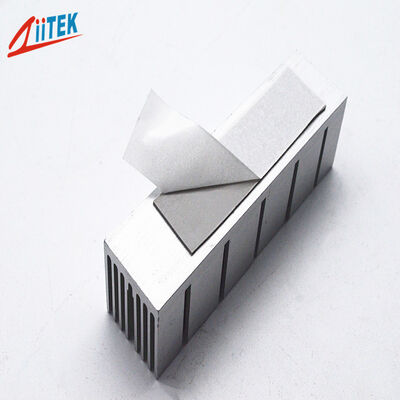

Low Bleed Thermal Pad Thermal GAP PAD Materials For AI Processors AI Servers 0

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated
